Renault 5 GTE Le-mans Megane F7R Umbau

Schlagwörter: , , ,

  • Dieses Thema hat 4 Antworten und 2 Teilnehmer, und wurde zuletzt aktualisiert vor 9 Jahren von Marcel.
Ansicht von 5 Beiträgen - 1 bis 5 (von insgesamt 5)
  • Autor
    Beiträge
  • #3899
    CoooL
    Teilnehmer

    Hope it is ok i post in english! My written German is bad.. 🙂

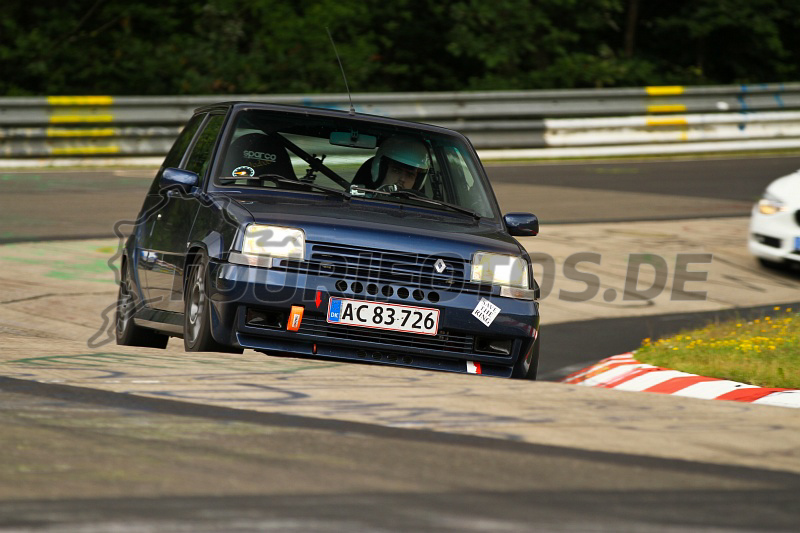

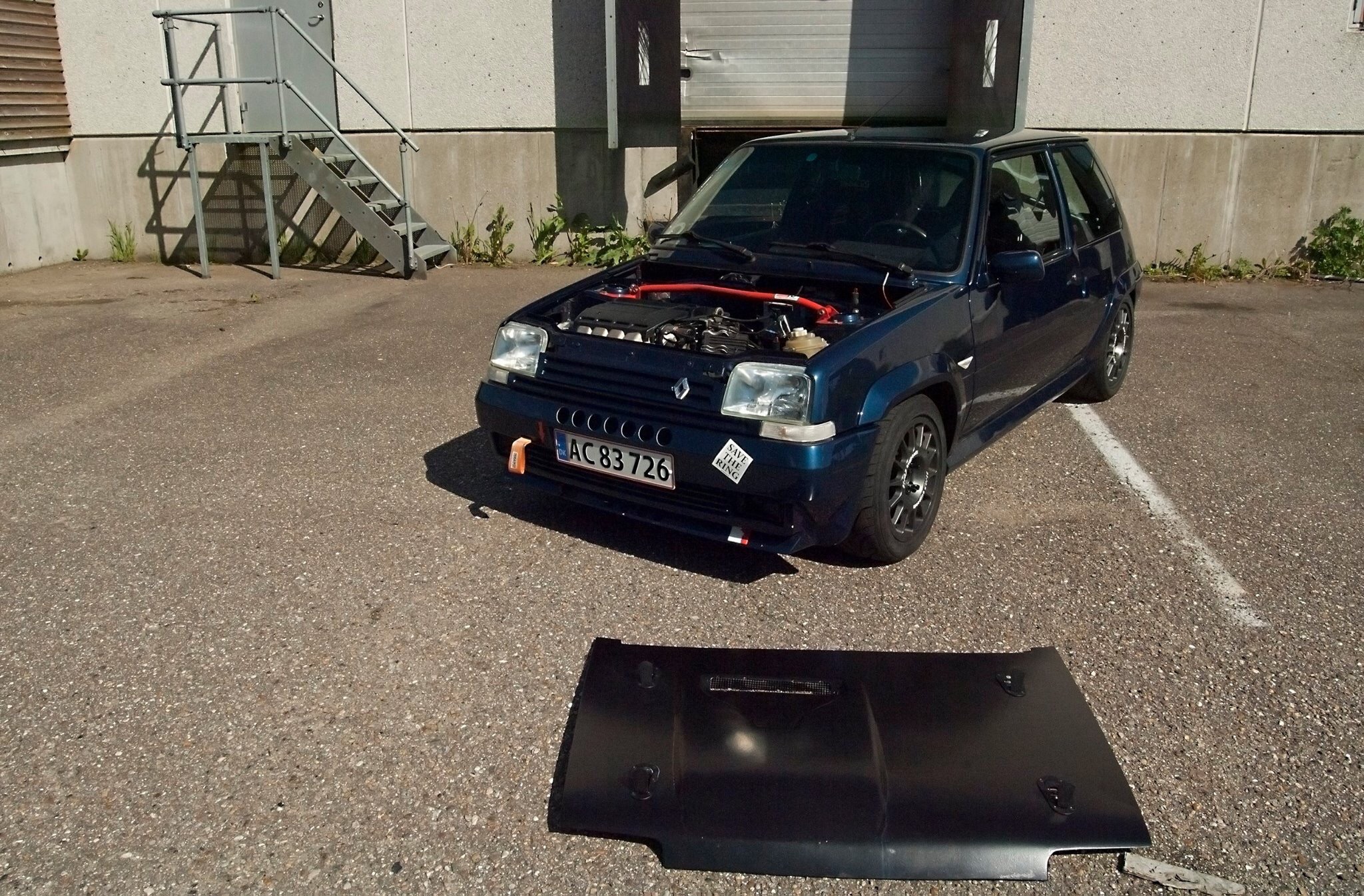

    I have a little Renault 5 i use for trackdays.



    Specs:
    Engine:
    F7R-710
    CatCam 225 Camshafts
    Stainless 4-1 Exhaust manifold

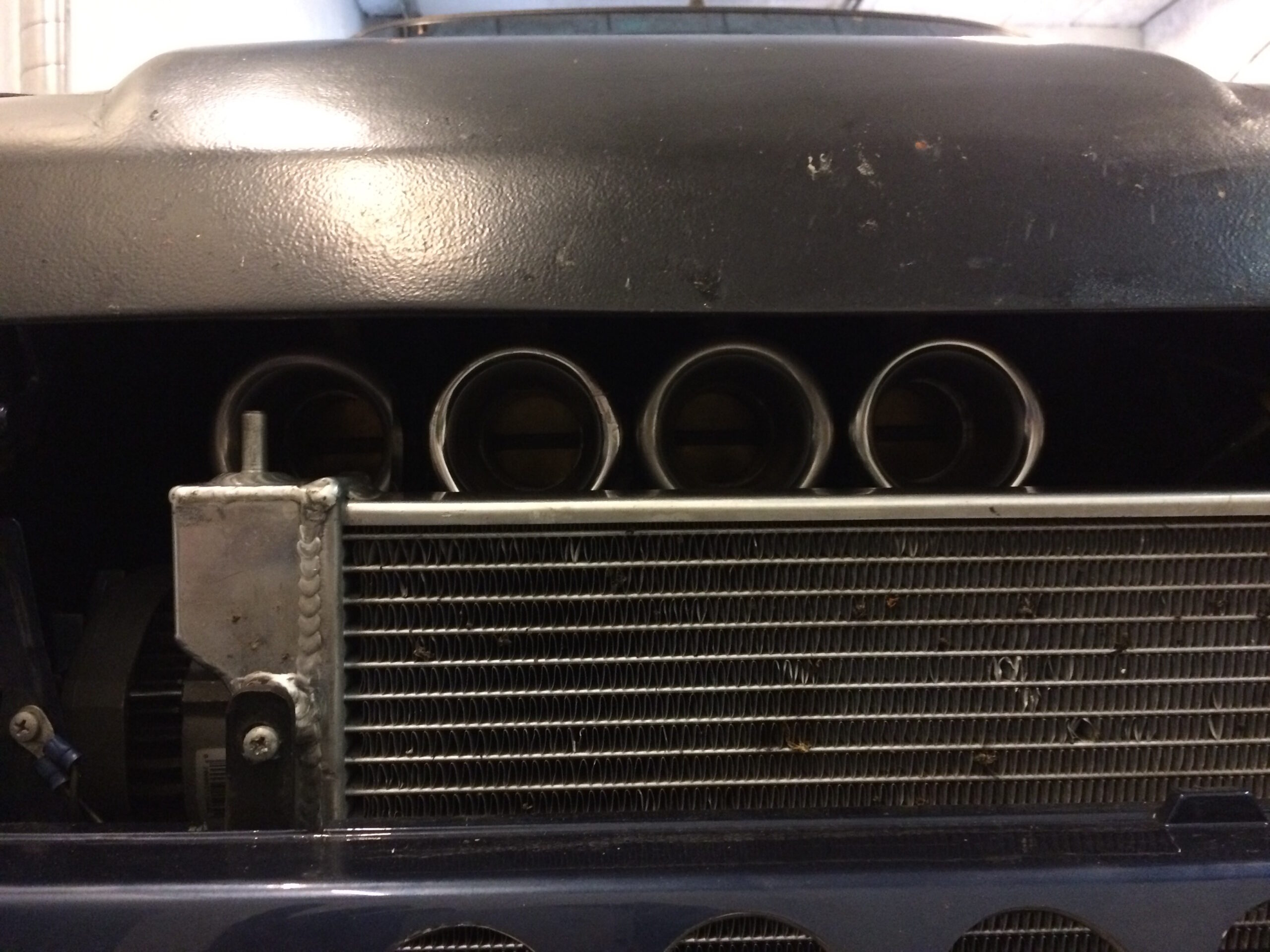

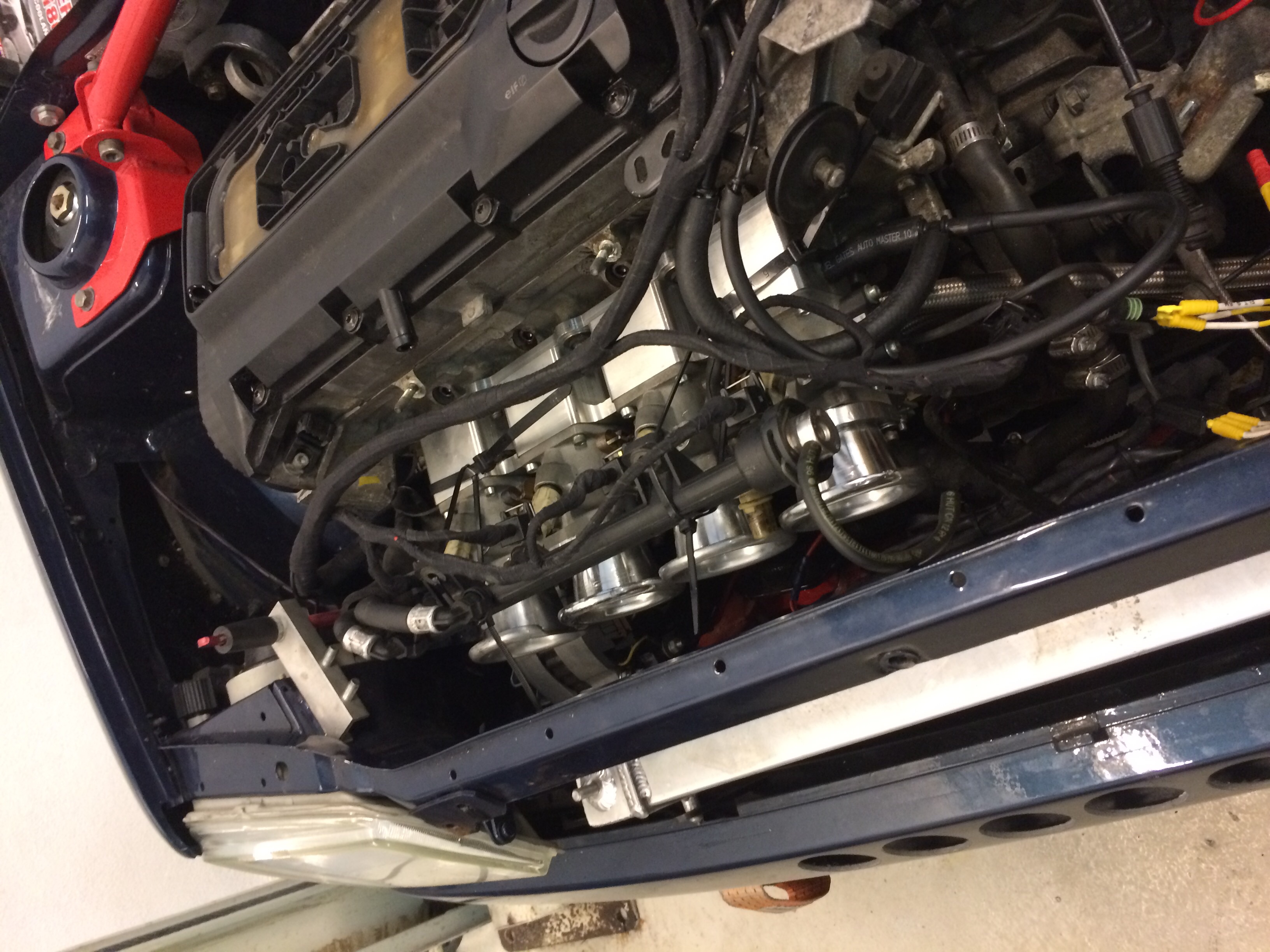

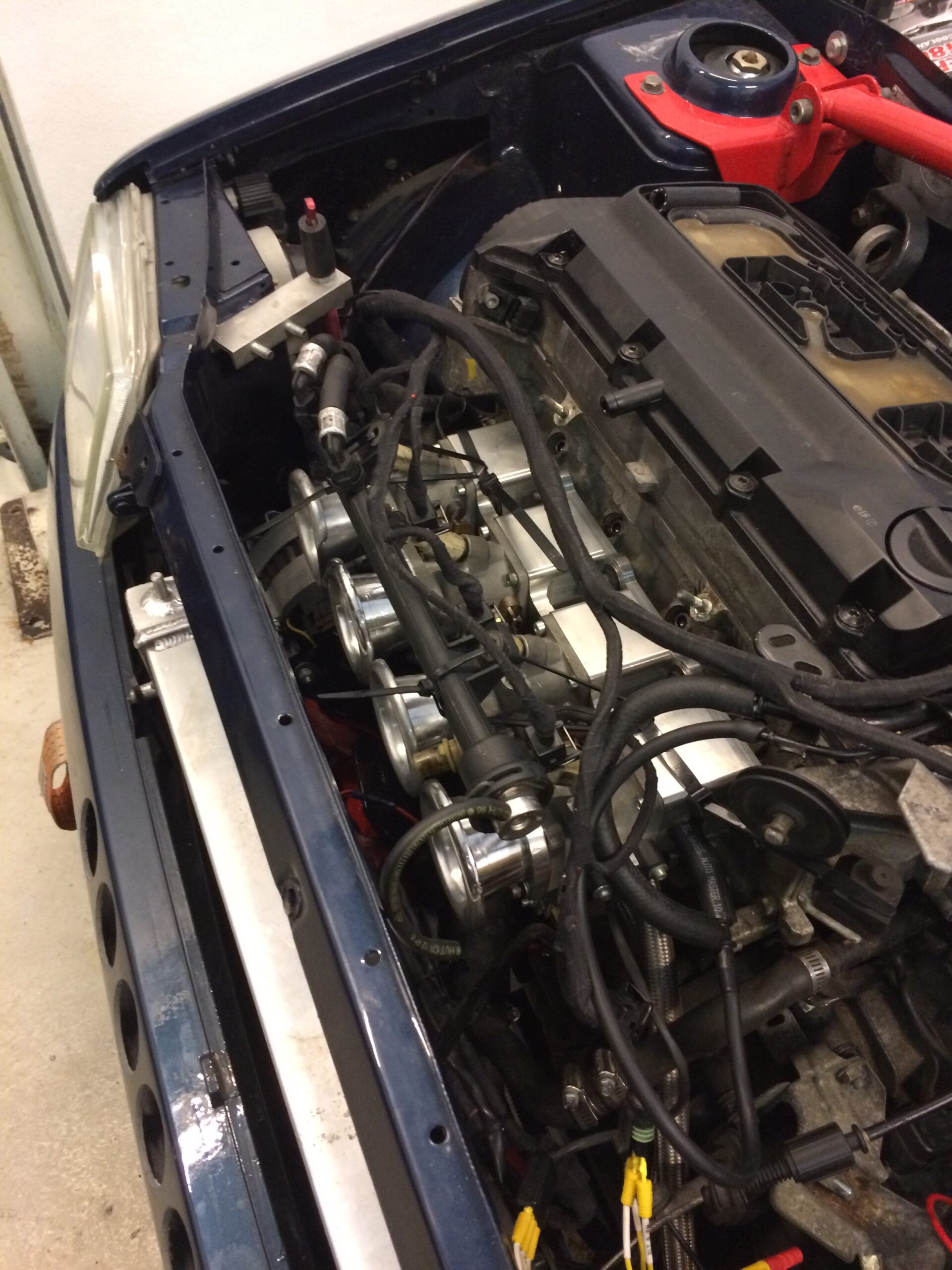

    Individual throttle bodies
    VEMS Engine management
    180-190 hp?



    Suspention / brakes:
    Ferodo DS-2500 front pads on 258 mm discs from Clio 16v
    GAZ GHA-330 Coilover suspension
    Sparco Strut brace
    Welded Clio I Subframe
    Solid top mounts
    Camber bolts

    page_606522-8043438c8beab4976d1b9493e61862a5

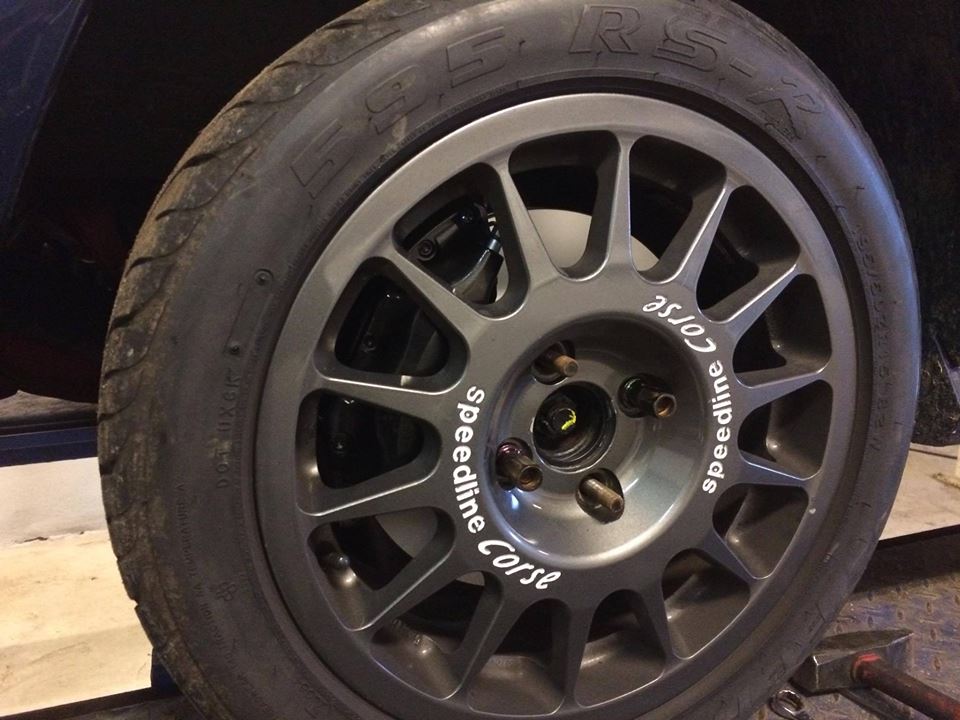

    Wheels:
    Speedline 2118
    Federal RS-R 595

    Interior:
    Heigo Half cage
    Carbon doorcards
    Flocked Dash
    Sparco Pro2000 Seats
    Sparco Harness

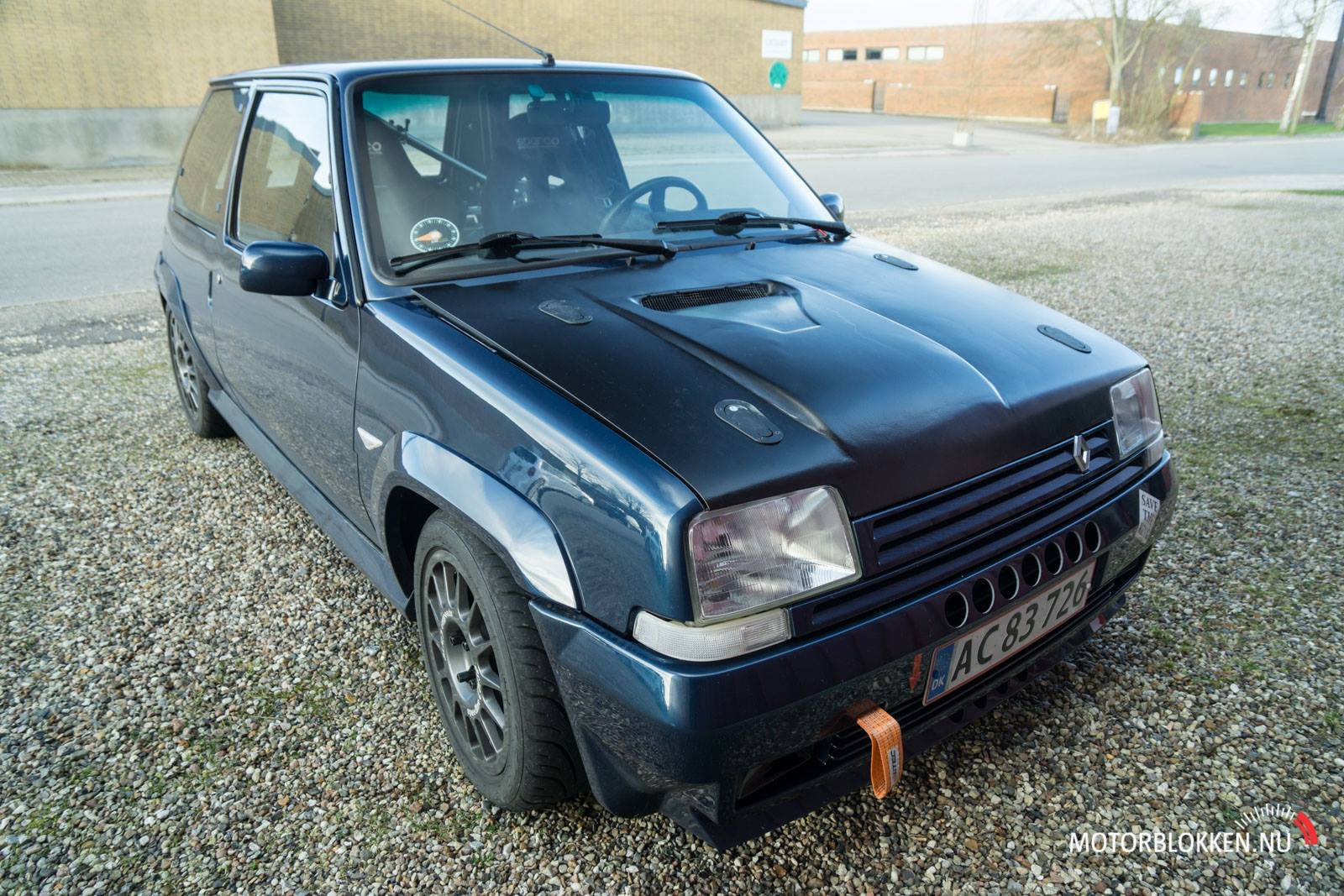

    Exterior:
    Frontbumper with holes to aid cooling
    Tow Strap
    Clio 16v Bonnet scoop
    Clear Indicators (adds 10 hp *LOL*)

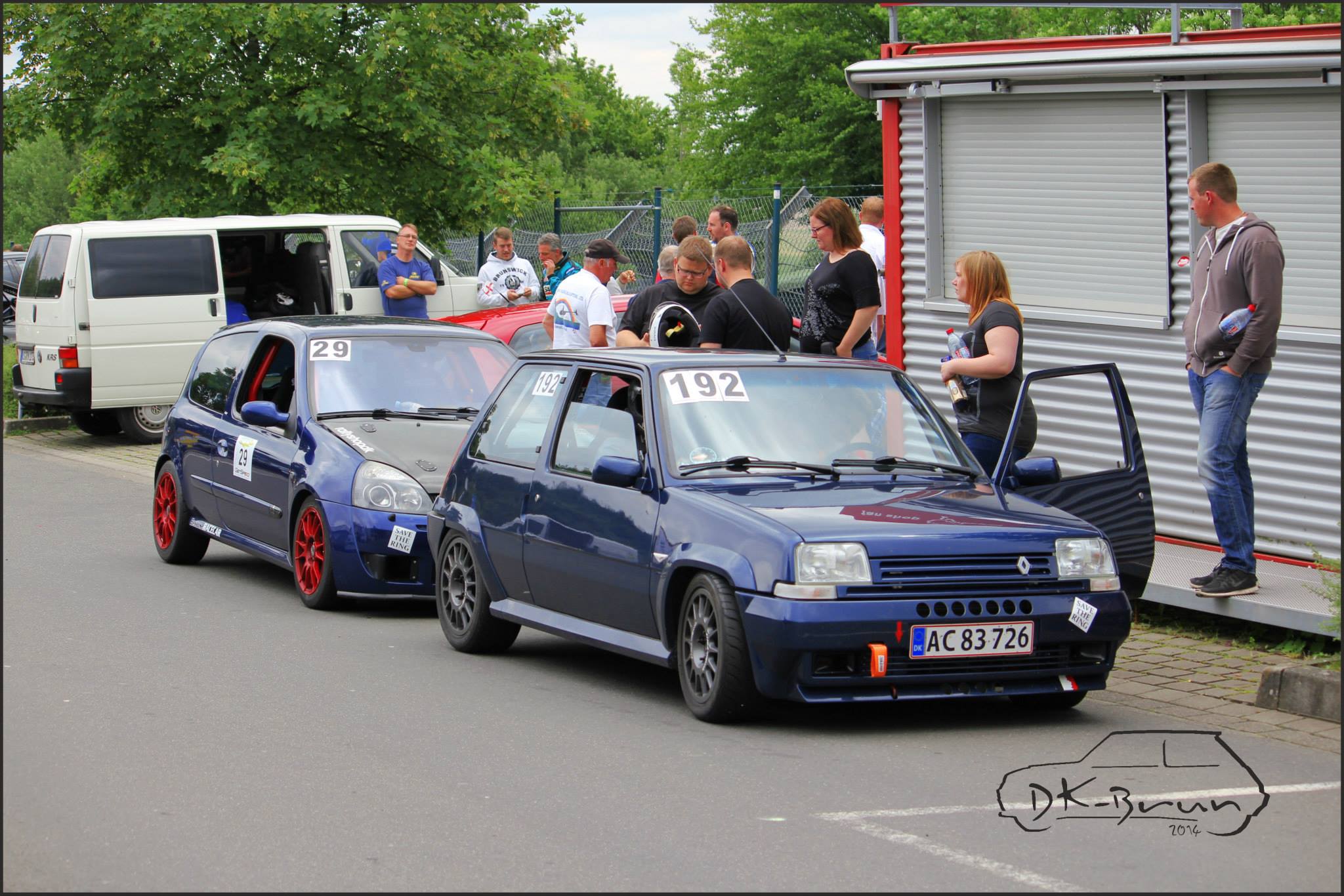

    10273102_10152151686420653_8770947401437878044_o

    Attachments:
    #3904
    CoooL
    Teilnehmer

    A few more pictures

    #4677
    CoooL
    Teilnehmer

    So a lot has happened since last update:

    I have ordered parts to build a high compression engine:
    Wossner 84 mm overbore pistons 12.5:1 Compression

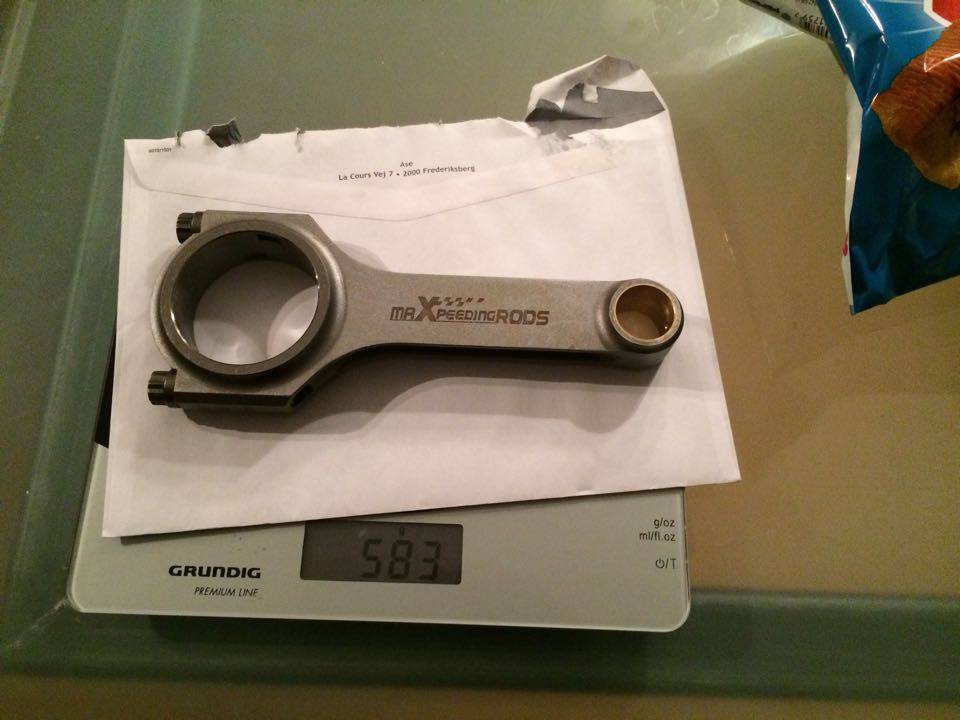

    And Forged Conrods

    Should end up with atleast 230 hp:

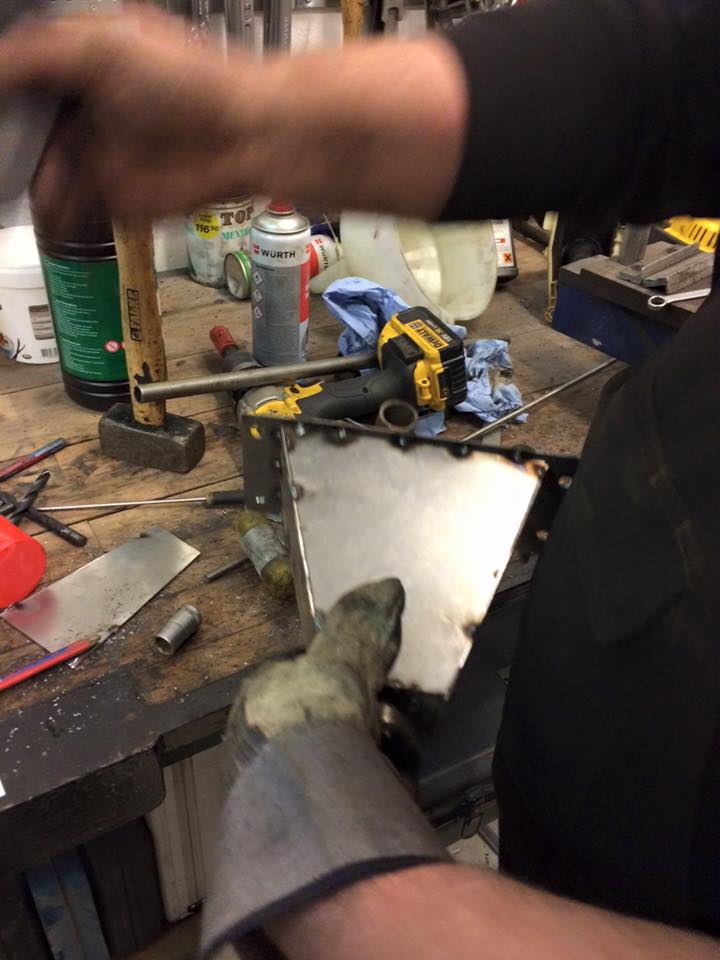

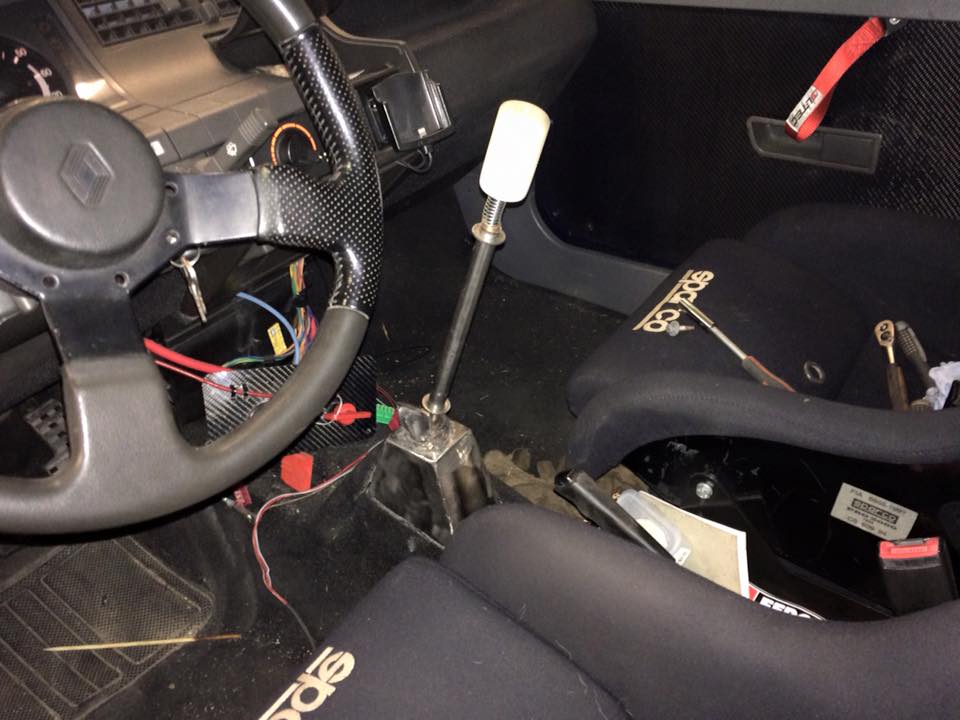

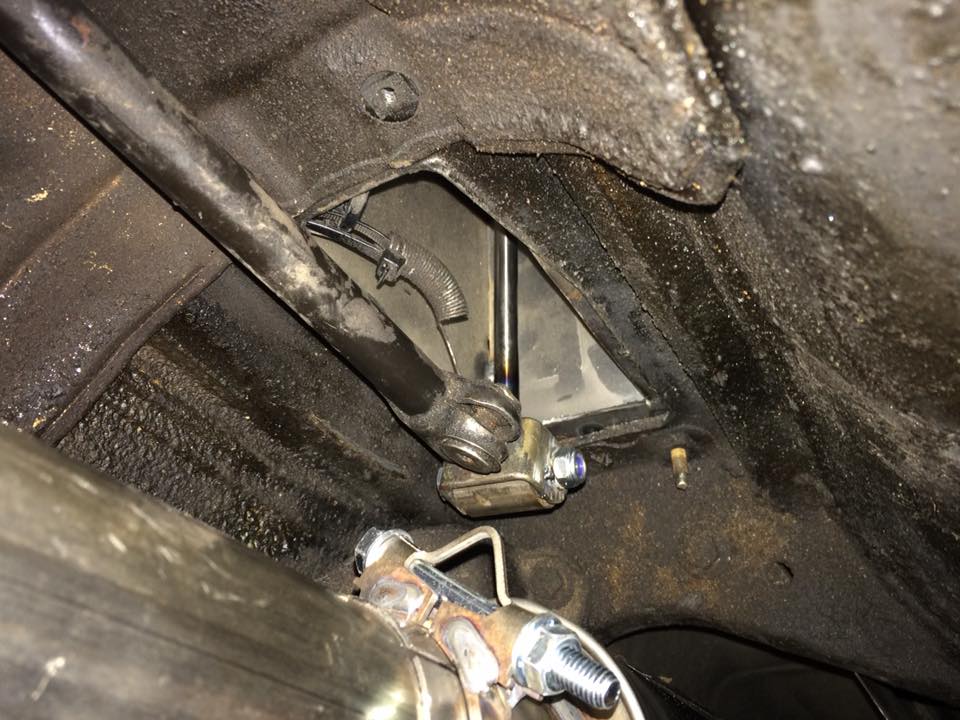

    Couldn’t get a race-gearshifter that i was sure fitted, so i build my own, it’s a bit shorter in throw than the original, and has bushes replaced by bearings in every moving parts:

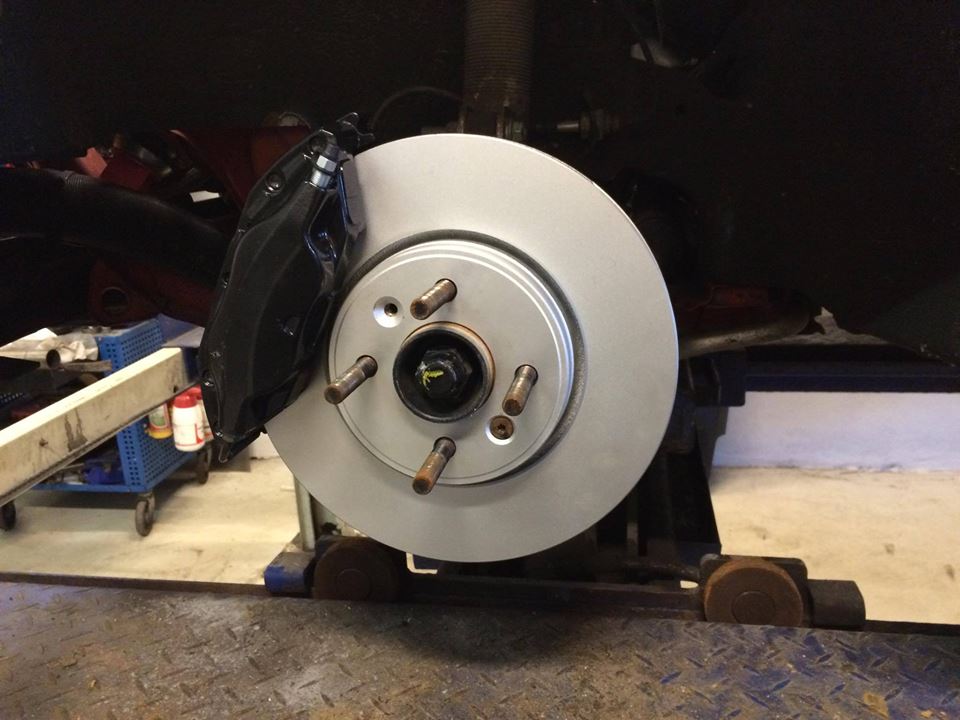

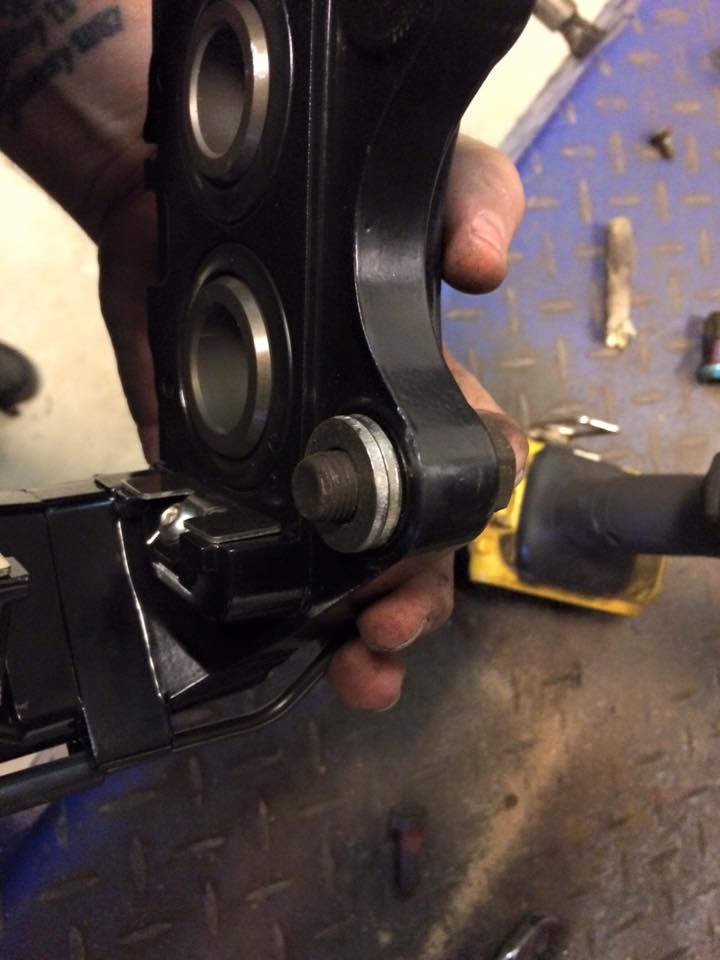

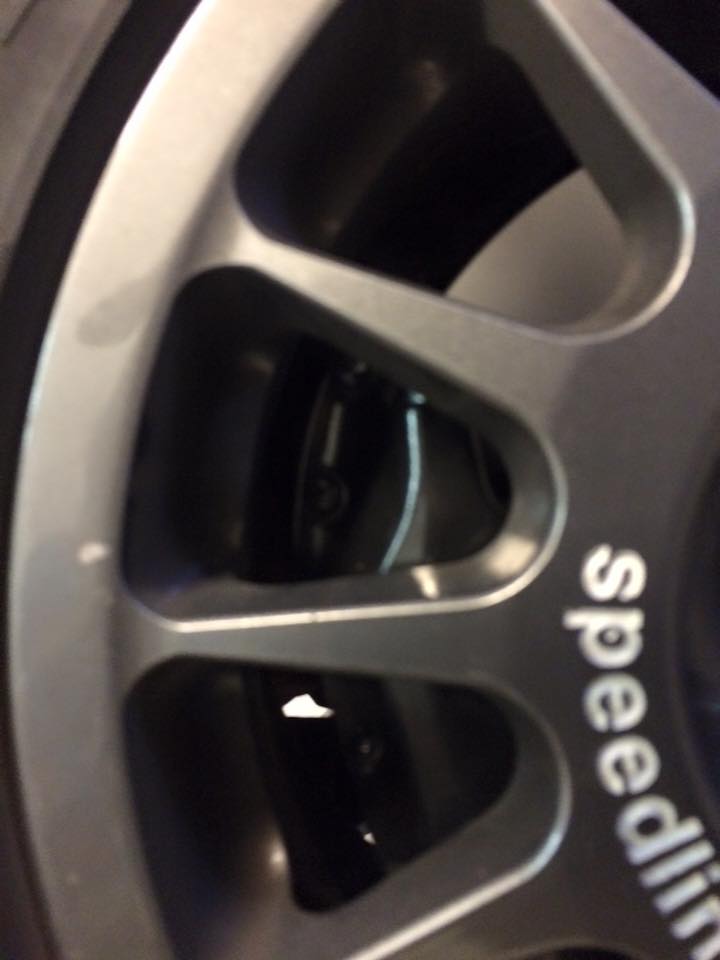

    And then i found out Peugeot 406 Coupe Calipers fits a Renault 5, so i bought a set with 280 mm Clio 172 discs, Ferrodo DS2500 Pads are on the way! The original disc are 238 mm, which was upgraded 259 mm, and now to 280 mm. Should give decent stopping power!

    Attachments:
    #4690
    CoooL
    Teilnehmer

    Feel free to comment in German!
    Bitte im Deutsch kommentieren!

    #4791
    Marcel
    Teilnehmer

    Hi,

    I love those R5´s, specially Yours! It would be great to know a bit of Your Person also. Its always nice to see the Person behind these nice Tracktools here 🙂 Hope to see You next Year at the Ring for some Nice Laps! I will follow your Build here.

    Viele Grüße aus Deutschland 🙂
